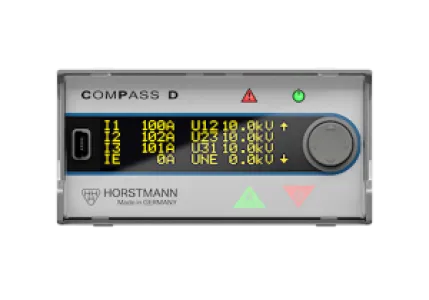

The ComPass D is particularly suitable for use in central substations in the medium-voltage grid that have a telecontrol connection. In addition to the short-circuit and earth fault functions, the ComPass D collects high-precision measured values of current, voltage and power from the station and makes them available for transmission to the control room.

A PT-100 sensor can also be used to monitor the transformer or station temperature, for example. Limit values can also be defined for all measured values, which can also be provided as alarms for the control room. Voltage coupling/measurement takes place capacitively via the VDIS system and/or via resistive (ohmic) voltage sensors.

Product features:
- Remote control option for 2 switching elements
- Communication via Ethernet with IEC 60870-5-104 protocol
- Clear error display and reading option on site:
2 directional arrow LEDs (A, B) and high-contrast OLED display
- Highly accurate current and voltage measurement with 0.5 %
- Monitoring of the variables voltage (U), current (I), load flow direction (A↑ or B↓ )
- Power factor (cos φ), power (P, Q, S), energy (E), temperature (T) and frequency (f)
- Suitable for all mesh types/star point treatments
- Earth fault detection with six different earth fault location methods, can also be combined
- Voltage coupling to capacitive and resistive (ohmic) sensors
- Limit value monitoring and remote signalling: U, I, P, Q, T
- Commissioning via USB connection with support for the ComPass Explorer and ScadaData configurator software
- Freely assignable binary inputs for recording and transmitting relevant status information from the system/station
- Freely programmable logic for defining the switching conditions

Added value:
- Fast error direction detection
- Highly accurate current and voltage monitoring
- Detection of limit violations
- Availability of measured values in the control room and on site
- Can be controlled remotely from the control room using the IEC 60870-5-104 protocol
- Automatic self-calibration of the capacitive voltage inputs, optionally with temperature compensation

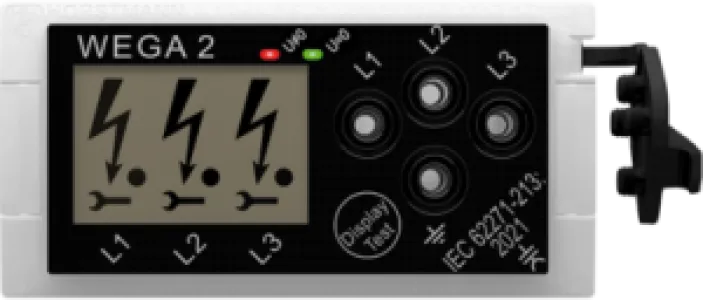

The Wega is an integrated voltage detecting system. The device determines and displays the operating conditions of the medium-voltage systems according to EN 50110-1.
Product highlights:
- According to the current IEC 62271-213:2021
- Tool-free mounting and dismounting
- Flexible C1 connection options (AMP and blade terminal)
- Optimized display contrast, temperature range and test with sensitive operation
- Decoupled output to the short-circuit indicator (OUT)
- Overvoltage indicator: phase-selective
- Low installation depth: 48 mm
- Integrated current-carrying relay contacts
Added value:
- Tool-free installation: quick and easy installation
- Integrated maintenance test: maintenance-free
- Fully encapsulated electronics: High functional reliability
- -40°C to 75°C: Extended temperature range
- Decoupled voltage transmission: Increased safety
- Relay contacts – Safe interlocking or remote signaling of voltage states

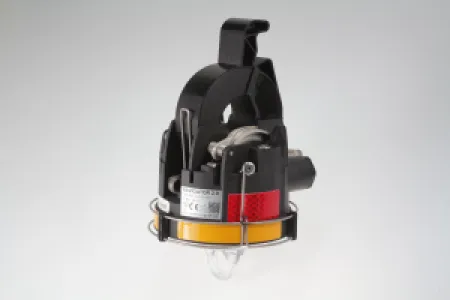

The Smart Navigator 2.0 is the ideal solution for monitoring overhead line networks. It detects short circuits with direction, voltage drops, overloads and other faults in the grid and reports them remotely without delay. It enables faster fault localization, provides data on network utilization and thus improved transparency

Product features:
- Nominal voltage range: 2.2 ≤ 69 kV (L-L)
- Min. load current for self-supply: 5 A
- Max. Continuous phase current: 600A

Added value:
- Short-circuit detection with direction – Reduces downtimes
- Overhead line monitoring – data for assessing the condition of the grid
- Innovative mounting – installation under voltage and from the ground possible
- Remote maintenance – configuration and updates without a technician on site
- Mobile radio via LTE or 450MHz
